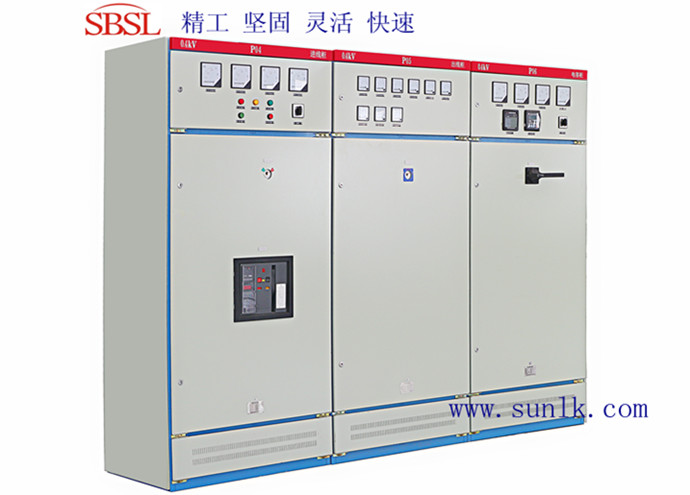

GGD型電櫃是一種安全、經濟、合理、可靠的新型低壓配電櫃。電櫃的主開關採用框架開關、塑殼開關等；旋轉操作式刀開關HD13BX和HS13BX，為GGD型電櫃的專用設計，故大大提高了主電路的動穩定能力及安全性能。
櫃體採用通用櫃的形式，構架用8MF冷彎型鋼局部焊接組裝而成。
通用櫃的零部件按模組原理設計，並有20mm模數的安裝孔，通用係數高。
適用於發電廠、變電站、廠礦企業等電力用戶的交流50Hz、額定工作電壓380V(660V)，額點工作電流至3150A的配電系統，作為動力、照明及配電設備的電能轉換、分配與控制之用。
主要技術參數:
額定電壓(V): 380(660)
額定電流(A): 1600~3150
額定短開斷電流(kA): 15,30,50, 65
外形尺寸(寬X深X高)(mm):600(800,1000,1200)X600(800)X2200
GGD type electrical cablinet is a kind of safe, economical, reasonable, and reliable new-type low voltage distribution cabinet, using ACB, MCCB and so on, as its main switch. Rotary knife-switch HD13BX and HS13BX are specially designed for GGD electrical cabinet, thus greatly raise the dynamic stability ability and safety of the main circuit.
The body adopts in-common-use type; the frame is composed of 8MF cold-bending section welding material.
The section and elements of through in-common-use is designed according to the modular principle, it has 20mm modulus installation holes, and it has high flexibility.
It is used in distributing system of power consumer, such as power plants, substitution, mine andindustrial enterprise with AC 50Hz,rated working voltage 380V(660V) and rated working current up to 3150A for changing distribution and control the power of the power device, illuminate device and distributing equipment.
Primary Technical Data:
Rated voltage (V): 380(660)
Rated current (A): 1600-3150
Rated short-circuit breaking current (kA): 15,30,50, 65
Overall dimensions (width depth height)(mm): 600(800,1000,1200), 600(800),2200
